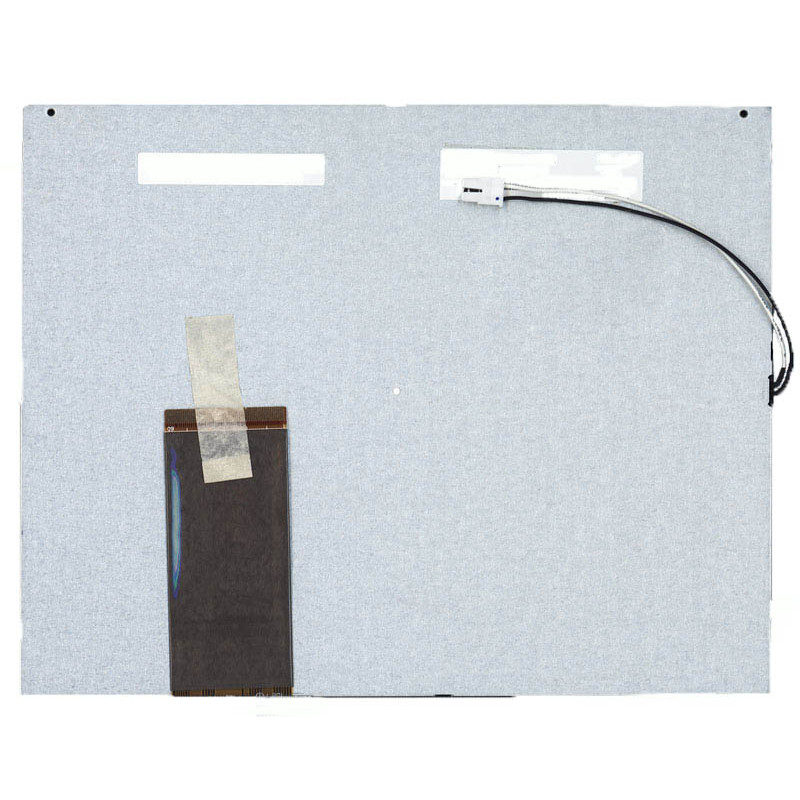

Матрица HSD084ISN1 A00

General information
Item Specification Unit
Outline Dimension 189.75 x 149.40 x 5.00 (Typ.) mm
Display area 170.40(H) x 127.80(V) mm
Number of Pixel 800 RGB (H) x 600(V) pixels
Pixel pitch 0.213(H) x 0.213(V) mm
Pixel arrangement RGB Vertical stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating (3H)
Weight 250(Typ.) g
Back-light LED Side-light type
Power Logic System 0.5 W (Max) W
Consumption B/L System 2.16 W (Max.) W

Габариты:
Horizontal(H) 189.75 mm
Vertical(V) 149.40 mm
Depth(D) 5.00 mm
